Mud pump Piston and Rubber

‌Sunrise Petro: A Pioneer in Mud Pump Parts Manufacturing in China

The commonly used mud pump is a piston or plunger type, which is driven by a power machine to rotate the crankshaft of the pump. The crankshaft then drives the piston or plunger through the crosshead to perform reciprocating motion in the pump cylinder. Under the alternating action of the suction and discharge valves, the purpose of compressing and circulating flushing fluid is achieved.

As can be seen, the piston is an important component of the mud pump. Sunrise can provide mud pump Piston assembly and relevant rubber with seal.

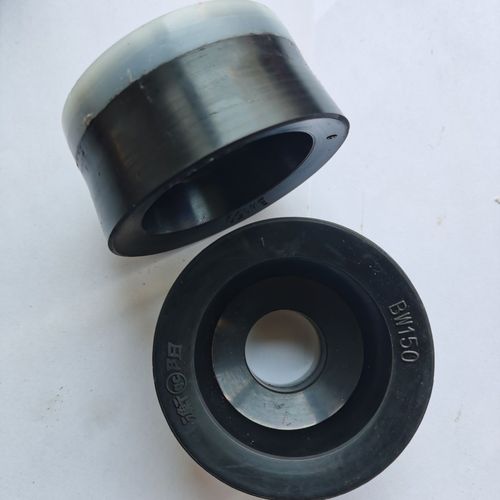

Piston

The piston of the mud pump consists of a piston core, piston rubber, pressure plate, and retaining spring. The piston rod is connected to the middle pull rod through a clamp, and the piston and piston rod are connected as a whole using a piston nut.

Sunrise can produce assembled rubber pistons, vulcanized polyurethane pistons, vulcanized rubber pistons, piston cores, piston cups, pressure plates, snap springs, piston rods, clamps, etc. All products comply with API standards and have good performance under various petroleum drilling conditions

The piston core is made of high-quality forged steel, and the piston rubber is made of specially made nitrile rubber, which is heat-resistant, oil resistant, and water resistant. The root is reinforced with multiple layers of fabric, It has high tensile strength, chemical resistance, wear resistance, long service life, and can be completely interchangeable with other pistons produced according to API standards worldwide.

The vulcanized integrated polyurethane piston is a type of piston that directly vulcanizes the piston rubber onto the piston core without the need for pressure plates and retaining springs. It is suitable for various types of mud, especially for high-pressure jet drilling and ceramic cylinder liners. Can be interchanged with assembled pistons.

Type of Rubber

The vulcanized integrated rubber piston rubber is made of specially made nitrile rubber, which is heat-resistant, oil resistant, and water resistant, suitable for working conditions such as high pressure and long stroke, especially suitable for cylinder liners with certain wear.

1.Standard type

Produced rubber are made of imported nitrile rubber, suitable for ordinary drilling environments with working pressure below 20Mpa, and working temperature not exceeding 120 ℃. Excellent wear resistance and chemical corrosion resistance, with a service life of about 260 hours in ordinary drilling environments.

2.High temperature and high sulfur type.

It is produced using hydrogenated nitrile rubber, suitable for high temperature, high pressure, and high corrosion working environments. The working pressure is 75Mpa, and the working temperature can reach 150 ℃. Hydrogenated nitrile rubber is a type of rubber used in aviation. In recent years, hydrogenated nitrile rubber has been used in the petroleum industry and has excellent wear resistance, oil resistance, and chemical resistance. Its amine resistance and steam resistance are very good. Especially in high-temperature and high-pressure working environments, other rubbers quickly break down under the action of hydrogen sulfide, carbon dioxide, methane, steam, and acid, but hydrogenated nitrile rubber exhibits good comprehensive performance.

3.Enhanced  type

The material is high-strength nitrile rubber produced, which has excellent oil resistance and wear resistance, and excellent comprehensive strength. Working temperature not exceeding 120 ℃, suitable for oil-based mud with working pressure below 35Mpa and working environments with high sand content.

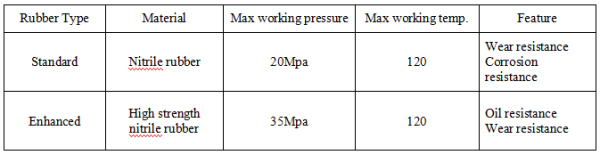

Data sheet
