‌‌Sunrise Petro: A Pioneer in API 6D Butterfly Valve Manufacturing in China

A butterfly valve, also known as a flap valve, is a structurally simple regulating valve that can be used for switch control of low-pressure pipeline media. A butterfly valve refers to a valve with a disc as the closing element (valve disc or butterfly plate) that rotates around the valve shaft to achieve opening and closing.

Sunrise has obtained API Q1, API 6D and ISO standards. Sunrise has rich experience in manufacturing butterfly valves and all products undergo 100% inspection before delivery.

Description

Butterfly valve is a type of valve that uses a disc type opening and closing element to rotate back and forth about 90 ° to open, close, or regulate the flow rate of the medium.Butterfly valves have a smaller flow resistance when fully open. When opened between approximately 15 ° to 70 °, it can also perform sensitive flow control, making butterfly valves widely used in the field of large-diameter regulation.

Due to the wiping nature of the butterfly valve disc movement, most butterfly valves can be used for media with suspended solid particles. According to the strength of the sealing element, it can also be used for powdered and granular media.

With the application of synthetic rubber for chemical corrosion prevention in butterfly valves, the performance of butterfly valves has been improved. Due to the characteristics of corrosion resistance, erosion resistance, dimensional stability, good resilience, easy forming, and low cost, synthetic rubber with different performance can be selected according to different usage requirements to meet the operating conditions of butterfly valves.

Structure

Mainly composed of valve body, valve stem, butterfly plate, and sealing ring. The valve body is cylindrical in shape, with a short axial length and a built-in butterfly plate.

Application

Butterfly valves are suitable for flow regulation. Taking DN1000 as an example, the butterfly valve is about 2T, while the gate valve is about 3.5T, and the butterfly valve is easy to combine with various driving devices, with good durability and reliability.

Advantage

1. Convenient and quick opening and closing, labor-saving, with low fluid resistance, can be operated frequently.
2. Easy installation and debugging.
3. Simple structure, small external dimensions, short structural length, small volume, and light weight4. Good tuning performance.
5. Flexible and labor-saving operation, with options for manual, electric, pneumatic, and hydraulic modes.
6. The sealing surface material generally uses rubber and plastic, so the low-pressure sealing performance is good.

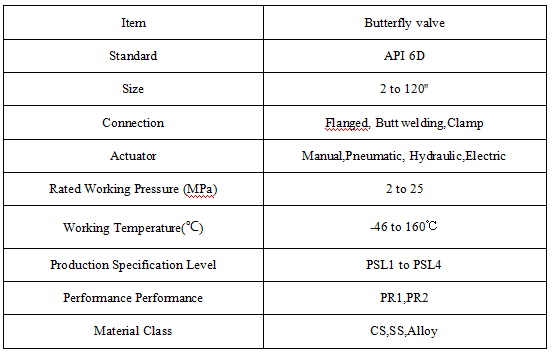

Data sheet
