Three Screw Pump

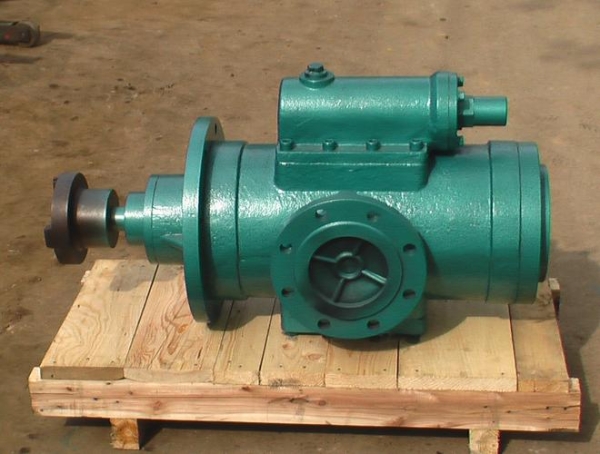

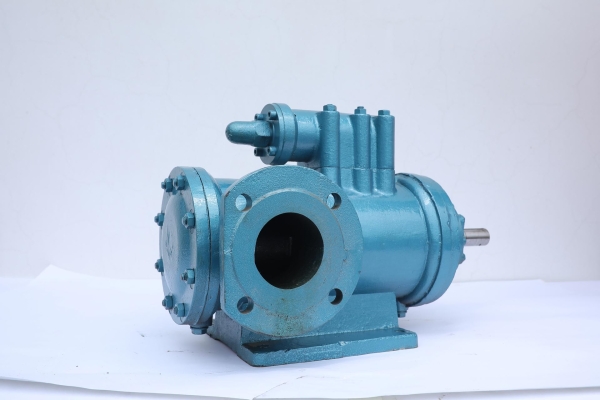

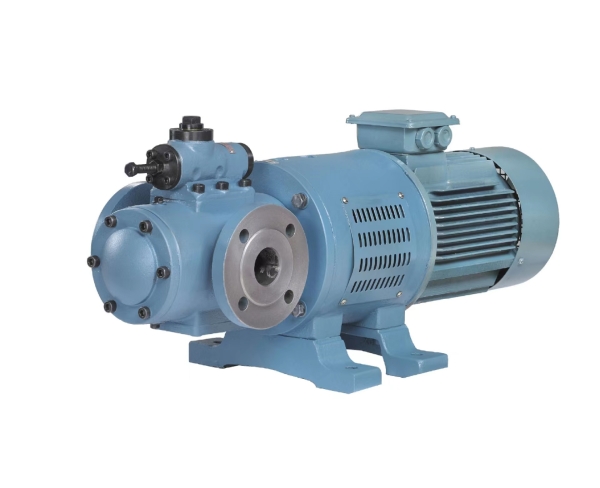

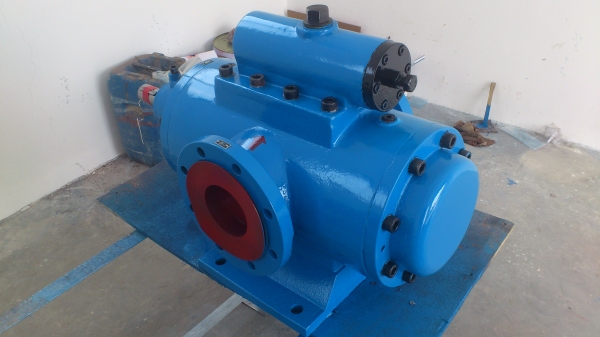

‌Sunrise Petro: A Pioneer in Three Screw Pump Manufacturing in China

Due to the internal design of three spiral rotors, the three screw pump can reduce liquid fluctuations and mutual impact between the turbines during operation. In addition, its sealing performance is also very good, the internal structure is relatively simple, and the service life is long. In industrial production, triple screw pumps have inherent advantages in combating high viscosity liquids, high-temperature liquids, highly corrosive liquids, etc.

Sunrise has abundant experience in R&D of twin screw pumps for all over the world.

Principle

The liquid enters the meshing space volume under the pressure difference. When the volume reaches its maximum and a sealing chamber is formed, the liquid continuously moves axially in each sealing chamber until it is discharged from one end of the chamber. At this point, the meshing space volume of the screw at one end of the discharge chamber gradually decreases, and the liquid is discharged. The working principle of a three screw pump is similar to that of a gear pump, except that the screw replaces the gear in structure.

Three screw pumps have two structures: single suction and double suction, but single screw pumps only have single suction. Three screw pumps must be equipped with safety valves (single screw pumps do not need to be equipped) to prevent damage to the pump or prime mover due to reasons such as blocked discharge pipes causing the pump's outlet pressure to exceed the allowable value.

Structure

A three screw pump of Sunrise uses the rotation of the screw to suction and discharge liquid. The middle screw is an active screw, driven by the prime mover to rotate, and the screws on both sides are driven screws that rotate in the opposite direction with the active screw. The threads of the main and driven screws are both double headed threads.

In a three screw waste pump, due to the meshing of the spiral grooves on the main screw and the driven screw, as well as their coordination with the inner surface of the three holes in the liner, several stages of dynamic sealing chambers are formed between the inlet and outlet of the pump. These dynamic sealing chambers will continuously move the liquid axially from the pump inlet to the pump outlet, and gradually increase the pressure of the transported liquid. Thus forming a continuous, stable, and axially moving pressure liquid.

Feature

(01) The pressure and flow range is wide, with a flow range of 0.2-320m3/h and a maximum working pressure of 5MPa;

(02) The inertia force of the internal rotating components is low, and the overall pump speed is high;

(03) Good suction performance and strong self suction ability;

(04) The types and viscosity range of transported liquids are wide, ranging from 1mm ²/s-760mm ²/s;

(05) Uniform and continuous flow, low vibration, and low noise

(06) It has strong heat resistance, and the maximum working temperature of a conventional three screw pump can reach 250 ° C. If it exceeds this temperature, it needs to be specially designed;

(07) The three screw pump has a solid structure, convenient installation, and easy maintenance;

(08) According to the needs of the conveyed medium, heating or cooling structures can also be provided;

(09) High work efficiency

(10) There is almost no wear and tear during operation, and the service life is long.

Application

Due to the various structures of the universal combination series of components, the three screw pump can be installed horizontally, flange, and vertically. According to the needs of the conveyed medium, heating or cooling structures can also be provided.

(1).Used as a fuel injection, fuel supply, and delivery pump in heating equipment.

(2).Used as a loading, conveying, and supply pump in the chemical, petrochemical, and food industries.

(3).Used in the mechanical industry as hydraulic, lubrication, and remote control motor pumps.

(4).Used on ships as pumps for conveying, boosting, fuel injection, and lubrication, as well as for marine hydraulic devices.

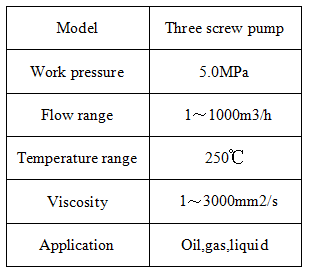

Data sheet
