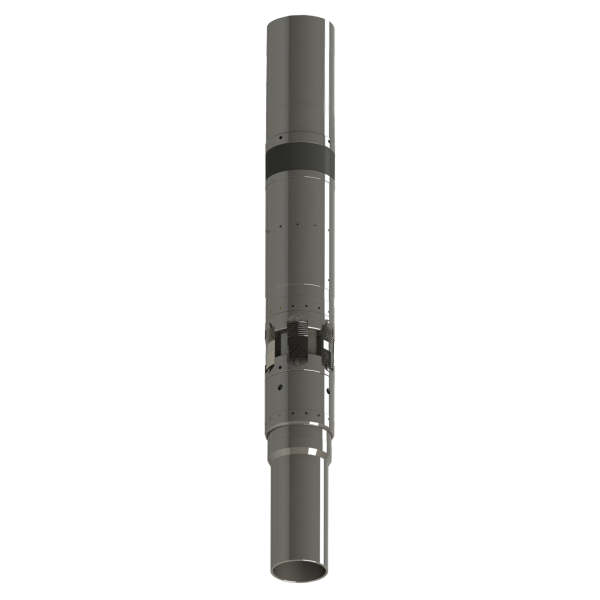

Mechanical Liner Hanger

‌Sunrise Petro: A Pioneer in Mechanical Liner Hanger Manufacturing in China

The liner hanger can be divided into two categories in terms of suspension methods: cement ring suspension and mechanical suspension. The safety of the cement ring hanging liner hanger is poor and it is rarely used; The mechanical liner hanger is reliable and easy to operate, with a wide range of applications.

Sunrise can provide various liner hanger for oilfield operation with high quality and competitive price.

Description

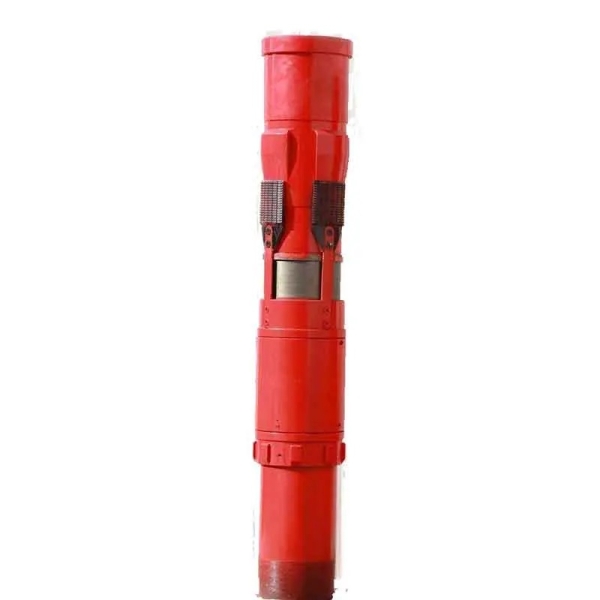

There are three types of mechanical liner hangers: micro step type, wedge type, and slip type, with slip type liner hangers being the most commonly used. The slip type liner hanger is divided into two types: hydraulic slip liner hanger and mechanical slip liner hanger, with mechanical slip liner hanger being the most commonly used. There are two types of mechanical slip liner hangers: J-shaped groove type and track type. The "J" groove type slip liner hanger is a rotating release spring mounted slip, while the track type slip liner hanger is a steering ring sliding mounted slip on the track.

Principle

The hanger is connected to the liner string and lowered to the sitting position. A pressure holding ball is inserted from the wellhead, and when the ball falls to the pressure holding support seat, the pressure is held from the wellhead. A pressure difference is formed between the inside and outside of the pipe, and the piston is pushed down to cut the hydraulic cylinder shear nail, driving the slip to move up along the cone and close to the inner wall of the upper casing. At this time, the pipe column is lowered to make the slip tooth stuck on the casing wall, achieving liner suspension. After sitting and hanging, apply pressure to hold the ball seat and open the circulation channel. The reverse connection between the forward drilling string and the hanger is used to prevent the loss of the liner after cementing.

Structure

The mechanical hangers are mainly composed of the following components: liner hanger assembly, feeding tool assembly, sealing assembly, ball seat assembly, rubber plug, float collar, float shoe, center pipe coupling, etc.

Feature

The liner hanger of Sunrise has been proven to be mature and reliable through practical testing, and has the following advantages.

1. The unique hydraulic cylinder design ensures more reliable seat suspension and can be used in different well conditions;

2. The sealing core can be lifted out of the wellhead with the tool being fed in;

3. Both the rubber plug and ball seat are designed with locking mechanisms, which can prevent leakage and floating after being pressed;

4. The reverse operation is simple, as long as the drilling tool is lowered by 3-5 tons and turned forward, the reverse can be easily opened;

5. Suitable for casing window side drilling, deepening of old wells, and well repair operations;

Application

The liner hanger is mainly used for hydraulic transmission to achieve liner suspension, and is widely used for technical liner and production liner cementing in oil and gas wells, brine wells, and geothermal wells. Liner hanger can be used for cementing in the following situations:

1. It is possible to save a significant amount of casing and costs for exploration and evaluation wells;

2. Improve long-term cementing operations to prevent low-pressure leakage;

3. Completing the well while reducing the load on the casing head and surface casing;

4. Simply and quickly seal open hole sections and deepen cementing of old wells;

5. Connect the liner back to the rock salt well section to enhance the sealing strength of the rock salt section;

6. Provide flexible completion methods and relatively safe cementing operations;

7. Seal the damaged section of the upper casing (corrosion, cracking, etc.).

Data sheet
