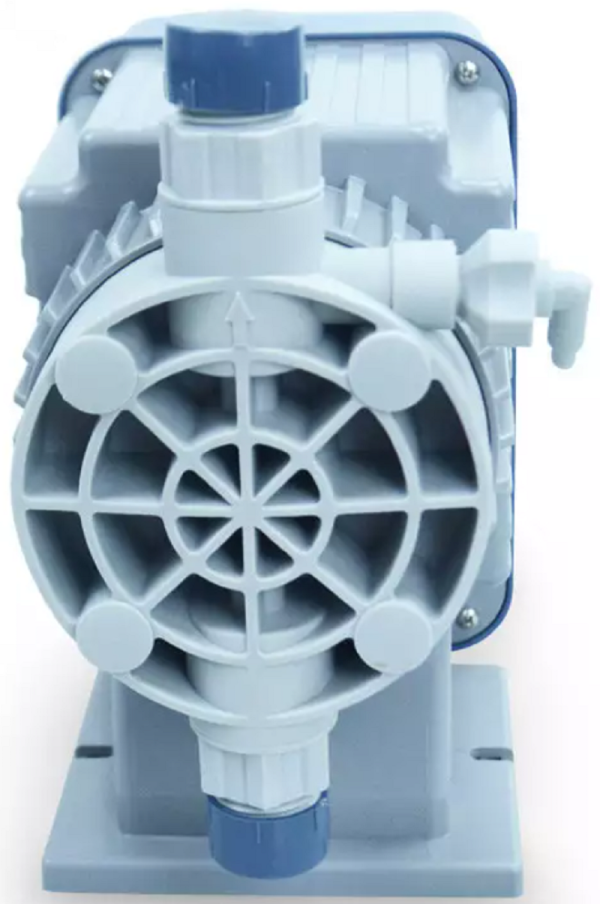

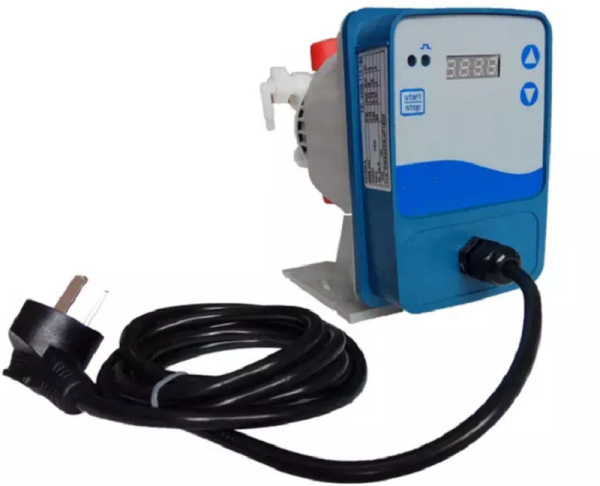

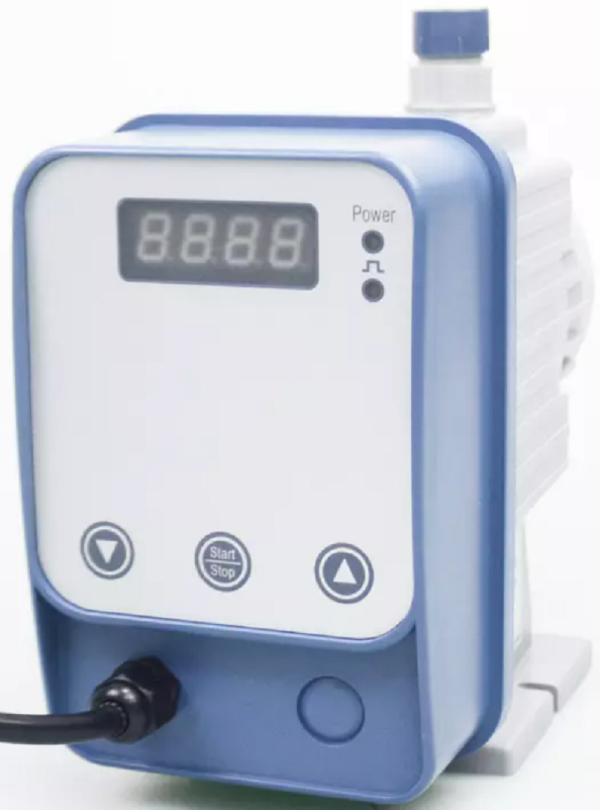

Electromagnetic Diaphragm Metering Pump

‌RockySea Petro: A Pioneer in Electromagnetic Diaphragm Metering Pump Manufacturing in China

The electromagnetic diaphragm metering pump is a metering pump driven by electromagnet and designed to deliver small flow and low pressure liquid. It is popular in the industry for its simple structure, easy control, low energy consumption, accurate metering, convenient adjustment and low price.

RockySea can provide high-quality electromagnetic diaphragm metering pump to meet the demand of small metering flow.

Description

The electromagnetic diaphragm metering pump is a kind of metering pump. The metering metering pump is a special positive displacement metering pump that can measure the delivered fluid. It is generally composed of control part, drive part, drive part and overflow part. The main difference between the electromagnetic diaphragm metering pump and other metering pumps is the drive part.

The composition of electromagnetic metering pump can be simply divided into three parts: driving power supply, electromagnetic driving mechanism and hydraulic end. The electromagnetic driving device is the core of the electromagnetic metering pump. It generates variable electromagnetic attraction according to the change of input power signal, and maintains the linear reciprocating motion of the plunger of the driving mechanism.

Parameter

Flow range: 1-20L/H
Maximum pressure: 0.1Mpa
Diaphragm material: PTFE (flow passage end face)
Pump head material: PVC, PVDF (PTFE), 304, 316
Motor: 110/220V, single-phase, 50/60HZ

Feature

The Electromagnetic diaphragm metering pump of RockySea has the following advantages.

1. The flow can be adjusted by manually adjusting the stroke to change the flow and adjusting the stroke frequency.
2. It is easy to install and equipped with filter bottom valve, injection valve and inlet and outlet hoses.3. The pump head and flow passage parts made of corresponding materials shall be configured according to the corrosion performance requirements.
4. Modular design, optional 4-20mA current signal or pulse signal control.5. Electromagnetic drive design, simple structure, stable performance.
